| 功能参数：Function parameters | 型 号: Product Model | FT-TFT10RVI-HD | |
| 屏幕类型: Screen Type | TFT-LCD | ||
| 屏幕尺寸: Screen size | 10 inch （16 : 10） IPS | ||
| 像 素: Resolution | 1280（RGB）X 800 Pixel | ||
| 屏幕背光: Screen backlight | LED | ||
| 亮 度: Brightness | 350cd/m2 | ||
| 可视范围: Active Display Area | 216.96 (H) X 135.60 (V) [mm] | ||
| 可视角度: Viewing angle | 90/90/90/90 | ||
| 电 源: Power supply | DC12V -24V | ||
| 功 率: Power Consumption | 6W | ||
| 信号接口: Signal interface(s) | HDMI/VGA/AV/BNC/USB | ||
| 视频制式: System | PAL&NTSC | ||
| 语言菜单: Language Menus | Totally 8 languages, like Chinese/English/Russian/French， etc | ||
| 操作方式: Operation Method | Full function remote controller / keys | ||
| 图像旋转: Image rotaion | upper/lower/left/right | ||
| 工作温度: Operatiom Temprature | - 2 0 ～ 7 0 ℃ | ||
| 外形尺寸: Outline Dimension | 253mm*166mm*35mm | ||
| 主板 mainboA28:D46 |
Mstar驱动IC Master drive IC |
GP1886-B (TSUMV56RUU-Z1) | |

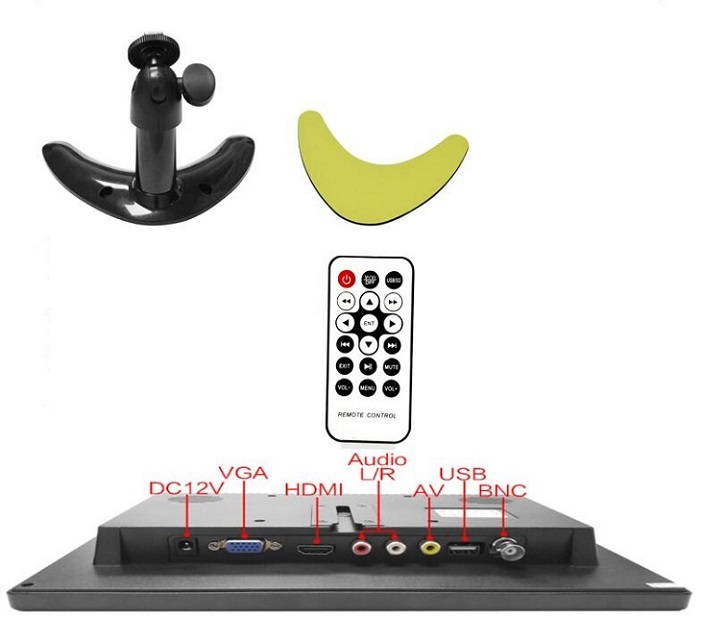

| 接口 Interface |
POWER | DC12V-24V Φ2.1插头 DC12V-24V Φ2.1 Plug | |
| HDMI | HDMI Version 2.0, compatible with HDMI 1.4 | ||
| VGA | VGA母头15针 VGA female plug, 15 pins. | ||
| Video1 | RCA 母头（黄色） RCA female plug (yellow) | ||
| Video2 | BNC母头 BNC female plug | ||
| Audio | RCA母头（红色，白色） female plug (red, white) | ||
| USB | USB Interface | ||
| 功能 Function |
HDMI | Accept signal input: 640 * 480 / 800 * 480 / 1024 * 768 / 1280X1024 / 1366X768 / 1024X600 / 1920*1080 @60HZ | |
| VGA | Accept signal input: 640 * 480 / 800 * 480 / 1024 * 768 / 1280X1024 / 1366X768 / 1024X600 / 1920*1080 @60HZ | ||
| Video1 | 自动识别NTSC/PAL制式信号输入 Automatically identify NTSC / PAL system signal input |
||
| Video2 | 摄像机信号输入 CCTV camera signal input | ||
| Audio | 左右声道输入 left / right signal input | ||
| USB | Movie / Music / Photo / Text | ||
| Speaker | Built in Speaker(1x2w) | ||
| 驱动液晶屏 TFT - LCD |
7inch-10.1 inch | 40Pin FPC LCDS Interface 800*480/1024*600/1024*768 TFT LCD |
|
| 7inch-10.1 inch | 50Pin FPC TTL Interface 640*480/800*480/1024*600/1024*768/1366*768 TFT LCD |
||
| 7inch-32 inch | 6位(6-digital and 8-digital)和8位的 LVDS Electrical Interface (Logic) | ||
| 640*480 / 800*480/1024*768/ 1280X1024/1366X768/1024X600 (HD LCD) |
|||
| LCD Model | B101AW06-V | ||
| Active Area | 222.72 (H) X125.28 (V) [mm] | ||
| Pixels | 1280 x 800 x 3(RGB) H x V | ||
| Pixel Pitch | 0.2175 (H)X0.2088 (V) [mm] | ||
| Electrical | 1 channel LVDS Interface | ||
| Support Color | 262K colors ( RGB 6-bit ) | ||
| Color | Saturation 45% | ||
| Contrast Ratio | 500 (Typ.) | ||
| Response Time | 8 (Typ.) msec | ||
| Input Voltage | +3.3 (Typ.) V | ||
| colok | Viewing Direction Free | ||
