Main Features:

● Standard H.264 video compression, supports dual stream network transmission
● Supports pentaplex operation: preview, record, playback, backup, network transmission
● Supports 4CH HD-SDI 1080P recording resolution
● Support max 2TB 2.5 inch HDD
● Support alarm pre-recording&motion detection
● Supports real-time remote view through 3G/4G/WIFI (optional)
● GPS information embedded in stream (optional), support electronics fence and historical track playback
● Supports time-lapse recording after the car is powered off
● Supports recording and displaying the license plate number
● Supports HDD overwritten by days
● With digital zoom capabilities when previewing the video
● With password protection function
● Supports PTZ control via built-in RS-485 port
● Supports transmitting audio via network
● Supports backup and upgrade with USB flash disk & USB hard disk
● Stable aluminum alloy structure with shock absorber
● Self recovery after power reconnected

Main Specifications:

1. Compression: H.264 high profile, ONVIF,
                             4 channels 720P/960P/1080P recording,
                             4 channels 720P/960P/1080P playback.
2. 1 LAN port.
3. 4 channel real-time recording.
4. Embedded Linux system, Double MCU control.
5. Video input/output: 4 channels input & 2 channel output.
6. Audio input/output: 4 channel input & 1 channel output (can be turned off).
7. Record mode: real-time recording,move detection.
8. Search mode: time,date.
9. Support 1pcs hard disk recording, can be 1TB maximum.
10. 4 channels playback at the same time.
11. Have Time-lapse turn off function, the time can be setted between 5-7200 seconds.
12. Wide Input Power Range :DC8-36V, anti-pulse voltage, low voltage protection.
13. 8 channel sensor input, 2 channel sensor output.
14. Support VGA output.

Product Pictures:

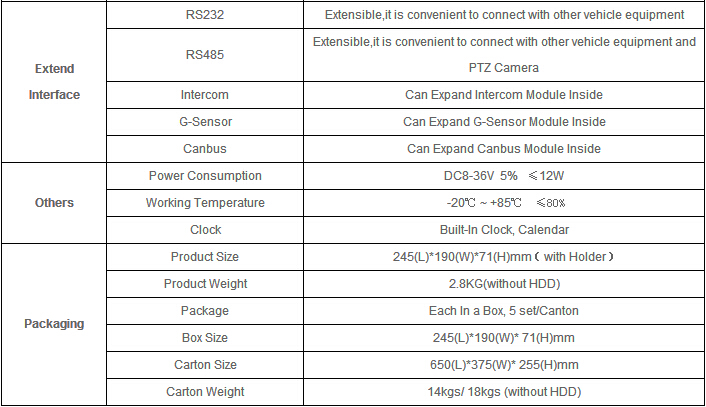

Detailed Technical Specifications:





Optional functions:

Basic Type (Pin Aviation Connector)

+A: GPS Function                           +B: 3G Function
+C: Pin Aviation Connector           +D: RS485&RS232
+E: Lan Port                                    +G: G-Sensor Function
+H: Intercom Function                    +W: Wifi Function
+K: Canbus

Optional Accessories:



Long-distance Bus Monitoring System Solution:




Police Car Monitoring System Solution:
