Features & Specifications:
01. H.264 main profile Video compression format ;
02. Can work with power supply ranging from DC8V to DC36V;
03. Supports Manual Record, Motion Detect and scheduled Record;
04. Video resolution: D1/HD1/CIF/QCIF selectable for each channel;
framerate: 1-25fps (PAL)
or 1-30fps (NTSC) for each channel;
05. Supports 4 channels "Video & Audio" recording and playback simultaneously ;
06. Supports 4 channels "alarm input" and 2 channel "alarmoutput";
07. Video clips can be saved onto either SD card or HDD; Supports SD card up
to 64GB and Hard Drive up to 2TB;
08. Video file can be backed up in H.264 format or AVI; and can be played with
normal Video player or customized player on PC;
09. With "Power-off delay" function to guarantee the DVR would shut down normally
to keep recorded files safe when an emergency occurs;
10. Can work with 4 cameras, and power 4 cameras directly;
11. Supports GPS, and wireless video transmission (WIFI and 3G optional) .
Technical Parameters:
Model: FT VMR-P4 (With TFT, with GPS, with 3G, with Wi-Fi)
Power input: DC8V~DC36V
Power onput: DC12V 3A
Working Tempreture: -10C～+50C
Output Vol tage(For Camera): DC 12V 3A
Power Supply: Car battery
Compression Format: H.264
Video Format: H.264/AVI
Record Signal: 4 Channel Video/Audio
Max Memory Capacity: 2000GB Hard Drive Plus 64GB SD Card
Record Mode: Motion Detect/ Scheduled Record/ Manual Record
Video Resolution: D1/HD1/CIF/QCIF for each Channel;
Frame Rate: 1-25fps (PAL) or 1-30fps (NTSC) for each channel;
USB Ports: USB 2.0 x 2
File Store Mode: Overwrite/ Stop When Full
Alarm Function: 4CH input and 2 CH output
Internet Interface: 10M/ 100M RJ45
Dimension: 180mm (L) x 50mm (W) x 194mm (H)

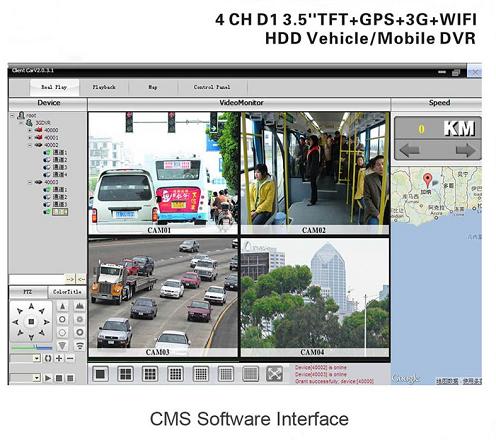

Its clear and more detailed pictures are as following:
