Features and Functions:
(1) H.264 main profile Video compression format.
(2) Can work with power supply ranging from DC8V to DC36V.
(3) Supports Manual Record, Alarm record and Scheduled Record.
(4) Video resolution: D1/HD1/CIF/QCIF selectable for each channel. Frame rate: 1-25fps
(PAL) or 1-30fps (NTSC) for each channel.
(5) Supports 4 channel full D1 recording and playback simultaneously.
(6) Supports two SD Card each up to 128GB, or 2.5 inch SATA II 4TB (Max) HDD, cycle
recording.
(7) Supports 6 alarm input and 2 alarm output.
(8) With power-off delay to guarantee the DVR would shut down normally to keep recorded
files safe when an emergency occurs.
(9) Support DC12V, 3A power out, can power 4 cameras directly.
(10) Equiped with external HDD interface,can connect an external HDD.
(11) Support 2 PTZ control interface.
(12) Support GPS,Wifi,3G/4G.
(13) Certificate: CE,FCC,RoHS.
Technical Parameters:

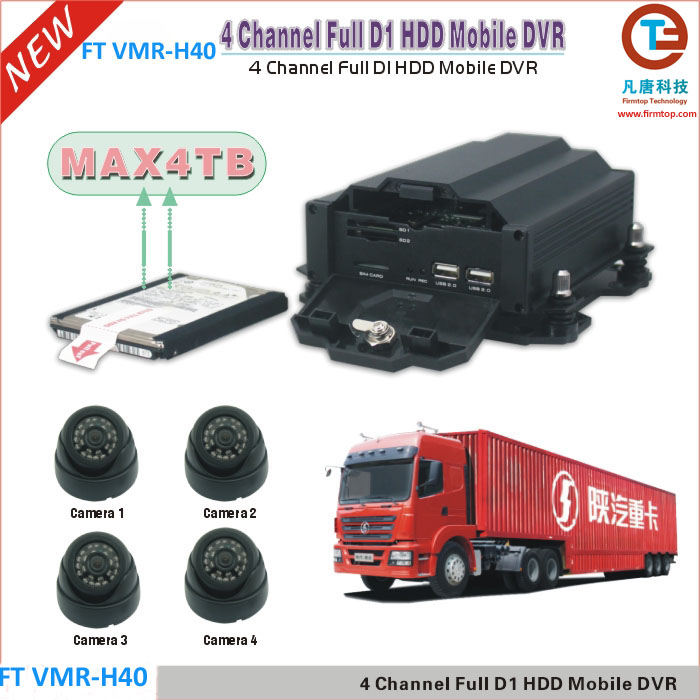

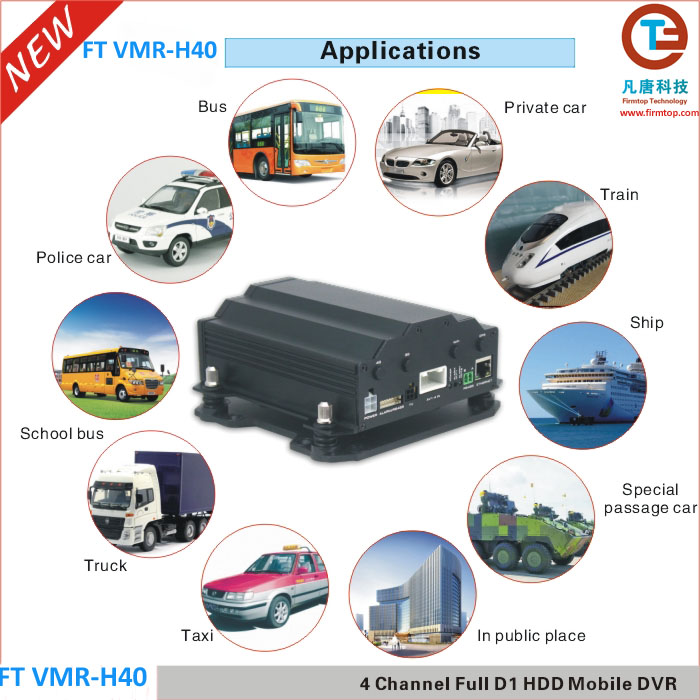

FT VMR-H40's clear and detailed pictures are as following:
