Product's breif introduction and main features:
1. Once this product is used, the display (TFT monitor) isn't needed anymore and it can be replaced by
a mobile phone, a tablet, etc., saving money greatly.
2. The camera has a built-in WIFI module and does not consume any data traffic.
3. Pure digital signal with anti-interference effect can be up to 100 meters in open space
4. Easy installation does not require wiring, the camera can be used once powered on.
5. Wide voltage design 12-32V, with wider applicability

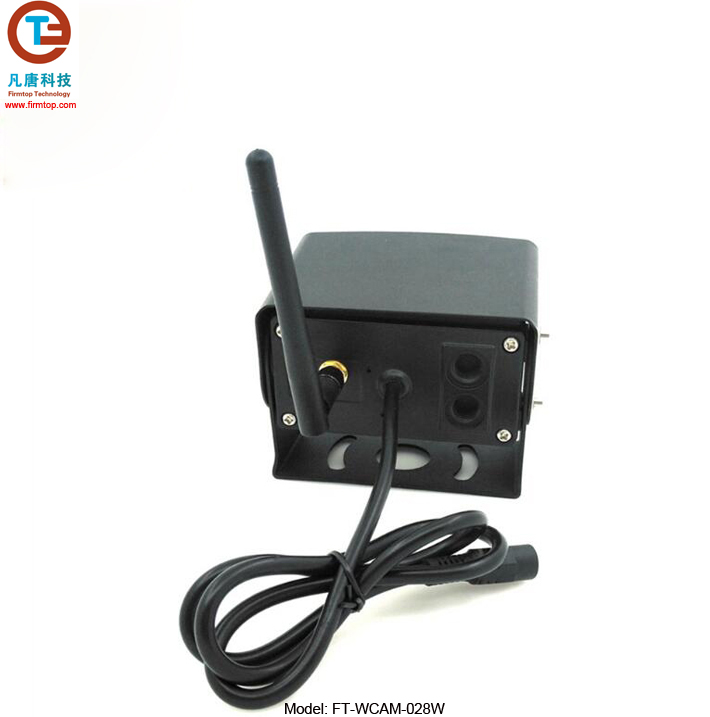

Wi-Fi Wireless Vehicle Camera (FT-WCAM-028W)'s Technical Parameters:
Image Sensors: IR Color CMOS
Operating Frequency: 2400MHz~2483.5MHz
Decompression Form: MPEG4
Transmission: 100ft open areas
TV System: PAL / NTSC
Waterproof rating: IP68
Effective Pixels: 648 x 512 pixels
Resolution: 540TV lines
Minimum Illumination: 0.5Lux / F1.2 0.2Lux / F1.2 (0Lux IR ON)
Pin Lens: f=2.8mm / F = 2.0
Lens Angle:120° IR leds: 28 Pcs
Vertical Sync. Frequency: 50Hz / 60Hz
Video Output: 1.0vp-p, 75Ohm
Power Supply: DC12V-32V
Current Consumption:≤300mA
S/N Ratio:Better than 48Db
Scanning System: 2:1Interlace
Operating Temperature: -20°C~70°C ,RH95％ MAX
