Features and Functions:
Product Introduction:
Product Name: 4 channel full 720P/960H network vehicle HDD DVR
Model： FT VMR-HD40 series
Product Overview: FT VMR-HD40 is new generation 4 channels full AHD (720P/960H Analog High Definition), full real-time (PAL 1-100 FPS；NTSC 1-120 FPS) HD network mobile monitoring recording device developed on the base of
HUAWEI Hisilicon high performance CPU, H.264 video compression technology and mobile internet technology.
FT VMR-HD40 comes with powerful functions, better compatibility, easy operation, full external interface. FT VMR-HD40 can be directly connected to
Firmtop specially developed VNS network cloud platform (Vehicle Remote Monitoring & Managing Network System), archive mobile device and monitoring management center to connect remotely. Powerful VNS network cloud platform makes vehicle GPS positioning, route tracking, video transmission, voice talkback, area limitation, alarm management easy, and vehicle management enter into wireless network era based on cloud computing technology.
Main Features:
1.H.264 Video compression format.
2.Supports Manual Record, Motion Detect and Scheduled Record.
3.Video resolution: AHD 720P /960H /D1 /Half D1 /CIF selectable for each channel.
4.Framerate: PAL (1～100FPS optional) and NTSC (1～120FPS optional) for each channel.
5.Supports 4 channels full AHD 720P recording and playback simultaneously.
6.Supports 1 x 4TB SATA HDD, 2 x 128GB (max) SD card, cycle recording.
7.Supports 6 alarm inputs and 2 alarm output.
8.Power-off delay to guarantee the DVR would shut down normally to keep recorded files safe when an emergency occurs.
9.Support DC12V, 6A power out, can power 4 cameras directly
10.With USB interface for easy data backup
11.Equiped with internal HDD interface
12.Support GPS, Wifi, 3G / 4G, CMS
13. Support P2P (Cloud) function
Technical Specifications：

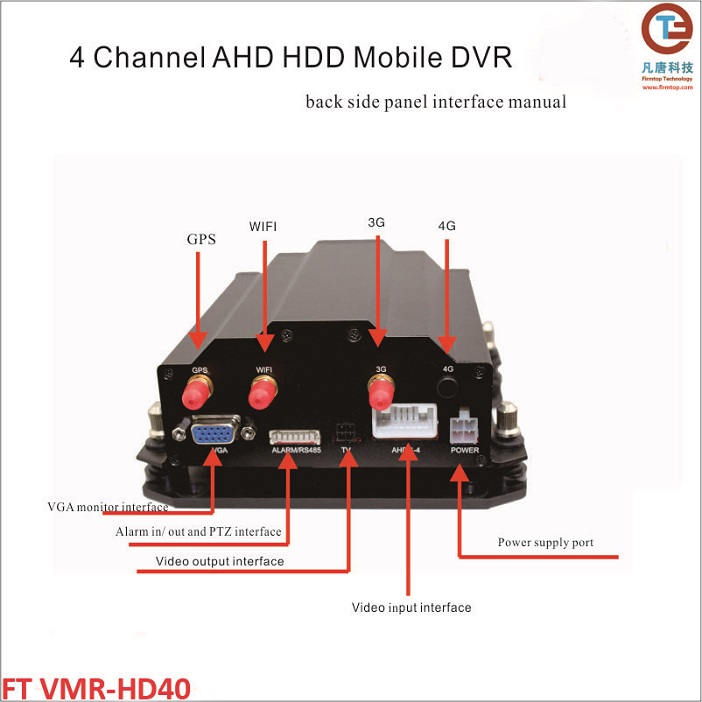

FT VMR-HD40's clear and detailed pictures are as below:
