Hard Drive Vehicle Mobile DVR

Hard Drive Vehicle Mobile DVR Hard Drive Vehicle Mobile DVR Hard Drive Vehicle Mobile DVR Hard Drive Vehicle Mobile DVR
Product name:
Hard Drive Vehicle Mobile DVR
Product item:
FT-VMR-P11 series
Features and Specifications:

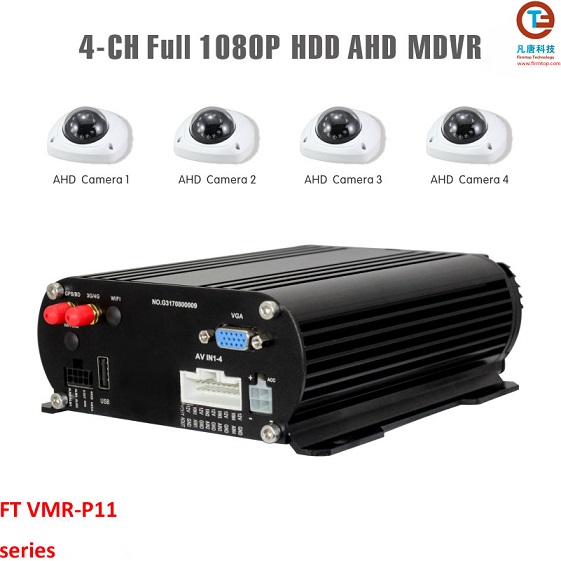

1.Supports 4ch AHD video signal input max at 1080P(AHD), compatible with the analog signal input.
2.Support the caemras with 4pin aviation connector.
3.Support DC12V~36V wide range voltage input, supply DC12V/3A power for cameras.
4.Ingition Switch and Power off delay Controlled by ACC+ cable, Support the power.
   overvoltage/undervoltage/short circuit/reverse connection protection.
5.Record Resolution: (1080P/1080N/720P/D1/Half D1/CIF)*4CH,
                                  Frame rate: 30FPS*4CH, Compression format: H.264

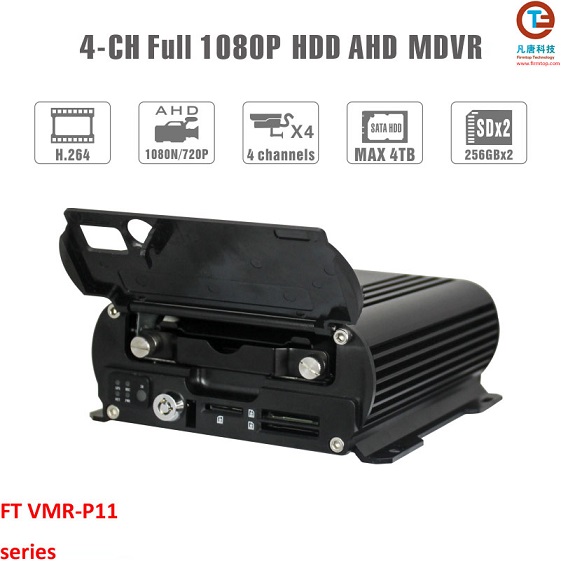

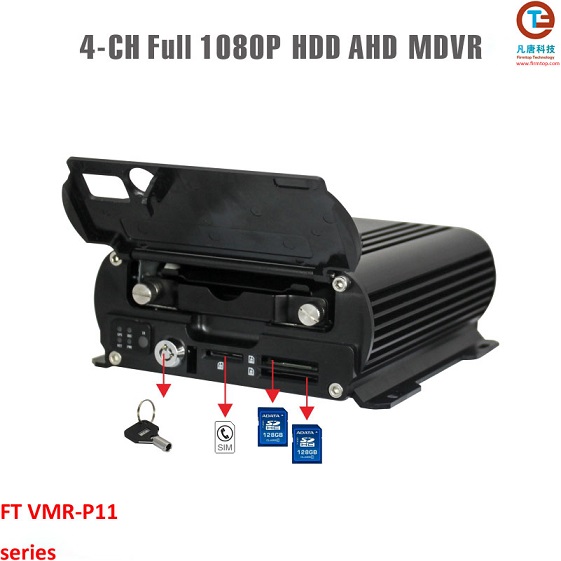

6.Support one Maximum 2TB 2.5" SATA HDD(or SSD) and two 256GB SDXC Storage card.
7.IR remote or USB mouse operation mode.

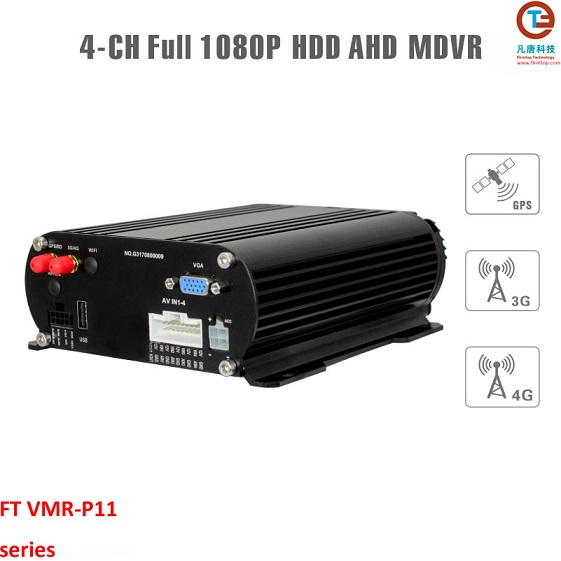

8.GPS/BD satellite postioning function, synchronization time, overspeed alarm.
9.Support 2.4G Wi-Fi/3G/4G connection.

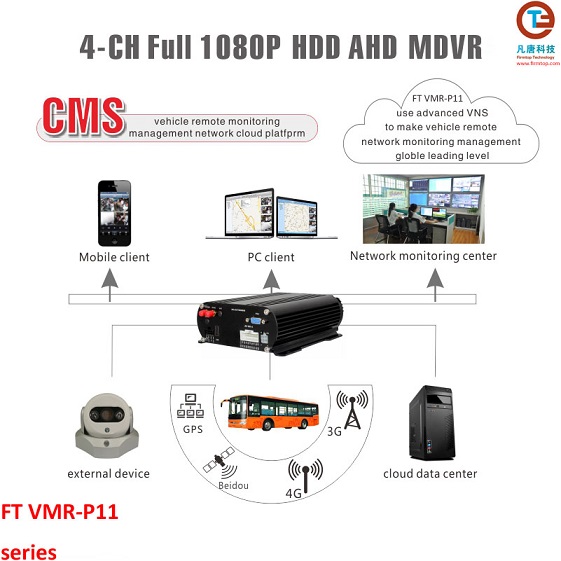

10.Support CMSserver for cental monitoring and management, support mobile app.
11.Support alarm input/outout,PTZ Control, fuel capacity detection, G-Sensor,etc.
12.With unique cooling design, anti-theft and anti-shake design for storage device

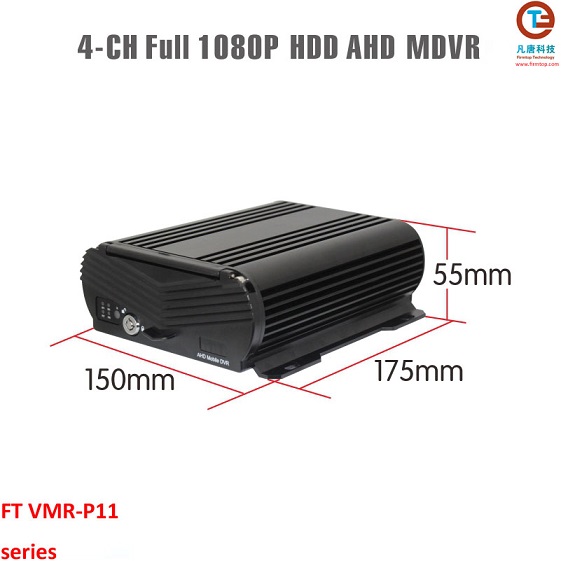

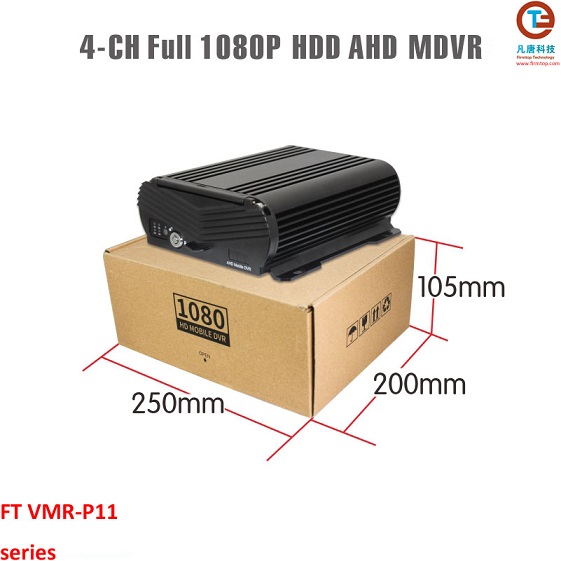

13.Dimension: 165 (Length)*135 (Widith)*60 (Height) mm, Weght: 1500g.

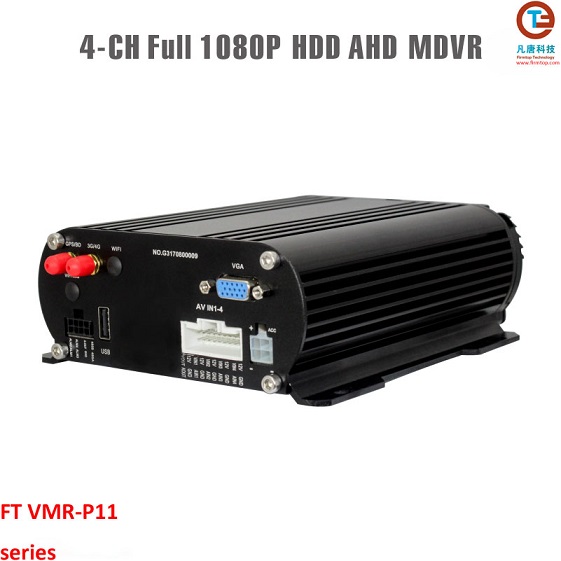

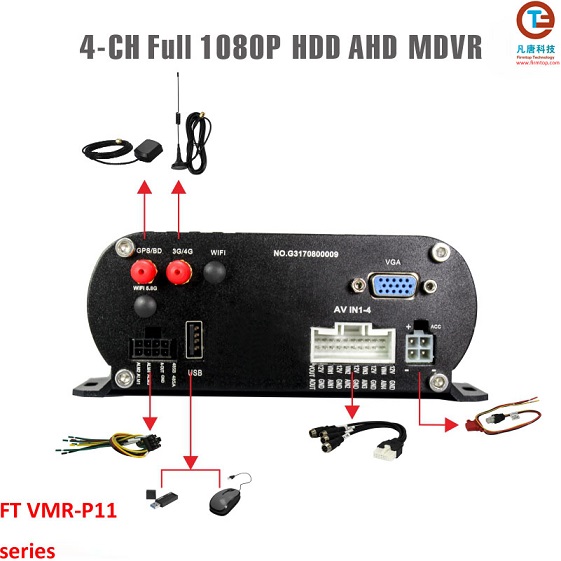

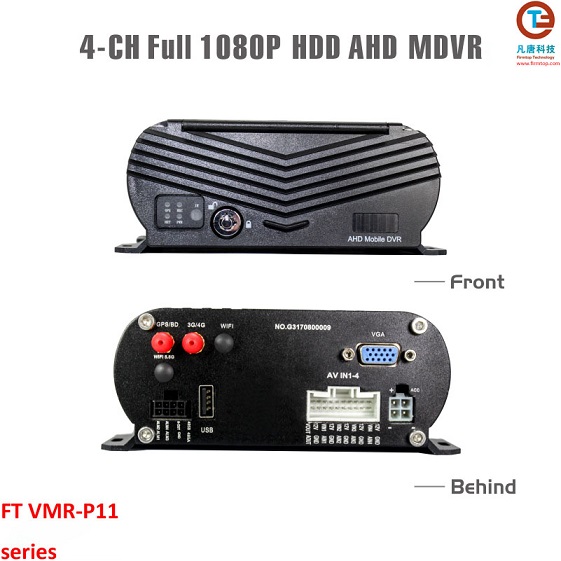

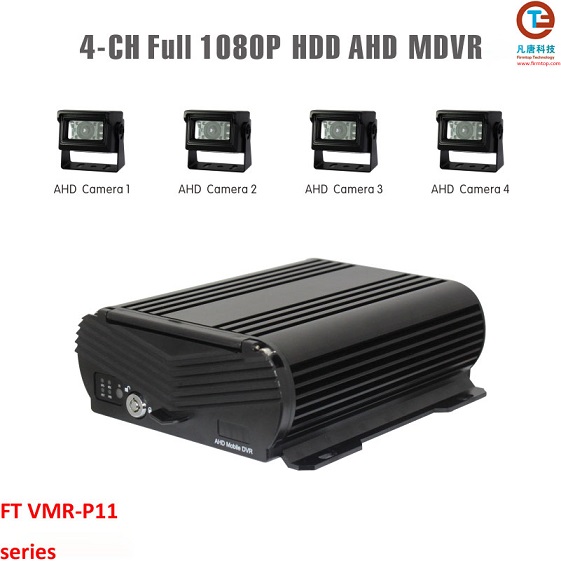

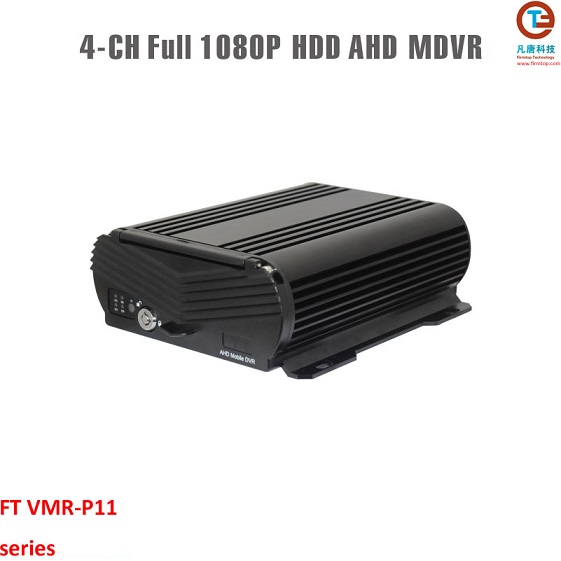

Its clear and detailed pictures are listed as below:
